Introduction

Sterility testing is an extremely important step before the release of sterile products.False positive, false negative experimental results, as well as experimental equipment failures and human error will bring significant time and money loss to the customer and directly affect the final release of the product.

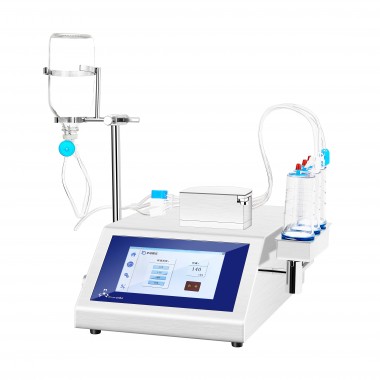

On the basis of cooperation and communication with customers, combined with the accumulated experience in the detection process, we developed NSTS-1000 bacteria collection instrument.The innovative hardware design and control software make the operation more convenient, and the intelligent system also makes the inspection efficiency and performance further optimized and improved.The peristaltic pump of the NSTS-1000 can transfer the samples of different packing forms safely and evenly to the aseptic detection device under the control of the software.It avoids the deviation of sterility test results and even affects the accuracy of sterility test results in the traditional aseptic inspection.

Mainly Futures：

1.The instrument design is more intelligent, no need PC software, and can set up multiple SOP on the client side.

2.The instrument design has manual and automatic two models

On manual model，operator can set every operating parameters.

On the automatic model，analyst can choose the presupposed SOP，according to the prompts finishing the testing operation，thus improve the repeatability and reliability of the testing results.

3.The stainless steel machine is polished, and its surface is clean and smooth. It is easy to clean and disinfect.

4.The pump head design is removable and easily cleaning and sterilizing

5.Linear pump head design,one key automatic pipe clamping, is simple and reliable, and maximum reduces the influence of artificial factors on sampling bacteria.

6.Over current, over voltage, overload and blocking multiple safety protection functions;

7.Pressure protect function can be set，The speed of the pressure can be adjusted automatically after the pressure exceeds the standard

8.Brushless DC motor, stepless speed, speed can be arbitrarily adjusted in the specified range;

9.Using high-definition color touch screen design, not only can set various parameters, but also real-time display of the current operating status, easy and flexible operation.

Technical parameters

1.      Working power supply：AC 220V/50Hz

2.      Rated Power：120W

3.      Rotating speed：20-240rpm  flow rate 500ml/min

4.      Suspension total height：45cm

5.      Weight：18kg

BASE PLATE LEVER BOW ROTER : made of ss 316L
STANDING HOUSING CONTROL UIT ,FASTENING ARM , HOLDING RINGS FOR BOTTLES : made of ss316
OPERATING DISPLAY : GLASS Or toughened glass
connecting cable ; PVC
Container for draining : PET or polyphenylsulfone
seals,gasket, adhesive, : SILICONE

Application:

    The product can be widely applied to the pharmaceutical industry， injections, powders, biological, blood , ophthalmic , maintenance liquids, products etc.,  sterility inspection and microbial limit test for purified and injection water. Meanwhile, if matching the membrane filter can also be used for microbial limit test in medical equipment, food, beverage and other industries.
